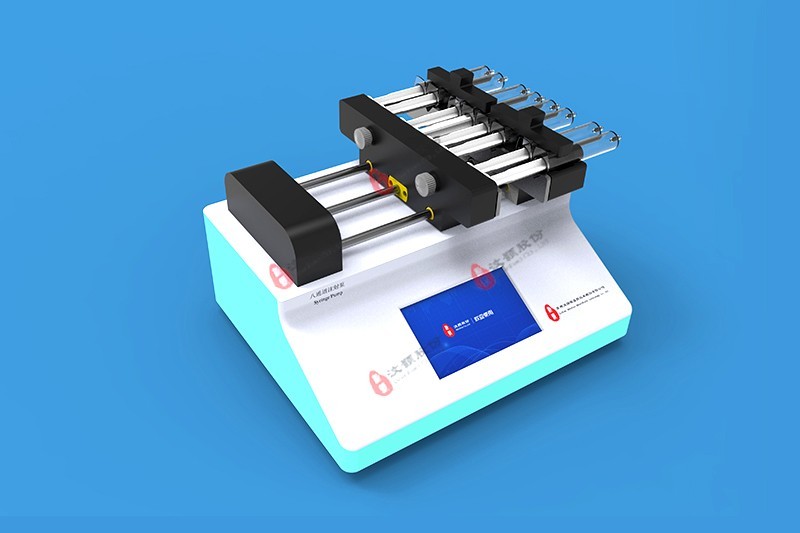

    WH-SP-08 Syringe Pump System

    The eight-channel micro syringe pump is a syringe pump that combines liquid injection and liquid absorption. It can install up to 8 syringes and can be widely used in microfluidic drive control and other related fields.

    1. description

    Introduction


    The eight-channel syringe pump (WH-SP-08) is a high-precision fluid control equipment independently developed by Wenhao Co., Ltd. The system has the characteristics of precision, stability, and strong anti-interference ability, and can be widely used in related fields such as microfluidic drive control.


    The device is a syringe pump that combines liquid injection and liquid absorption. It can be installed with up to 10 syringes. It is easy to use and simple to operate. It can complete the parameter setting, modification and view of fluid control in the main interface of the startup. The parameter input process The model and inner diameter of the syringe can be selected directly from the list, or manually input, and then other parameters (flow rate, flow rate, time, infusion type, etc.) can be input. The task can be paused at any time during the work process, and various settings can be reset Parameters and execute immediately.


    technical parameter


    Working mode: liquid injection, liquid suction, first injection and then suction, first suction and then injection;


    Number of channels: 8;


    Maximum stroke: 130 mm;


    Syringe specifications: 10 uL-10 mL;


    Travel resolution: 0.078 um;


    Injection volume per microstep: 0.856 uL (8 10 mL syringes);


    Linear speed range: 4.68 um/min-133 mm/min;


    Maximum linear thrust: 35 kgf;


    Control accuracy: ≤±0.5% (when stroke ≥ 30% of maximum stroke);


    Setting method: full touch screen setting;


    Control method: touch screen, USB (RS485), external (level) control;


    Display mode: 5-inch color LCD screen, resolution 800*480, display multiple parameters on the same screen, animation display operating status;


    Weight: 4.5 kg;


    Working voltage: DC 24V;


    Dimensions: 300×250×174 mm;


    Working environment: temperature 0℃-40 ℃, relative humidity <80%.


    Features


    1.2.1 Determination of Syringe Model


    (1) Search from the list


            There is a list of standard syringes in the manufacturer's brand. After the syringe model is selected, the program automatically loads the corresponding inner diameter value.


    (2) Custom input


            If there is no syringe used by the user in the syringe program list, you can directly enter the type and inner diameter of the syringe. The device can store multiple sets of user-defined syringe inner diameter values.


    1.2.2 Target parameter input


            Target parameters include: liquid volume, flow rate, and time. Choose to input any two parameters, and the other parameter system will get directly.


    1.2.3 Power-down memory


            When the device is running, the power supply is interrupted. After the power is restored, you can choose whether to continue working according to the previous parameters.


    1.2.4 Traffic jam alarm


            During the operation of the equipment, if the propulsion mechanism of the syringe pump is blocked, the syringe pump will stop the propulsion mechanism and sound a whistle alarm.


    1.2.5 Calibration


            By calibrating the flow rate, a more accurate dispensing volume can be obtained.


    1.3 Graphical interface features


            ?The display of the syringe specification library, you can choose the appropriate type according to your needs;


            ?Setting and real-time display of operating parameters;


            ?Setting and monitoring of operating range;


            ?Real-time monitoring of operation progress.


    Feature Diagram


    (1) Screw shaft support block; (2) Fastening knob; (3) Syringe push block; (4) Syringe; (5) Syringe pressing block; (6) Screw rod; (7) Guide shaft; (8) Screen; (9) Syringe tail pressure plate; (10) Syringe baffle; (11) Shaft support block; (12) Power switch; (13) External interface; (14) DC24V power socket; (15) USB interface.

    Syringe Pump SystemSyringe Pump System
