Home > Devices > Pump

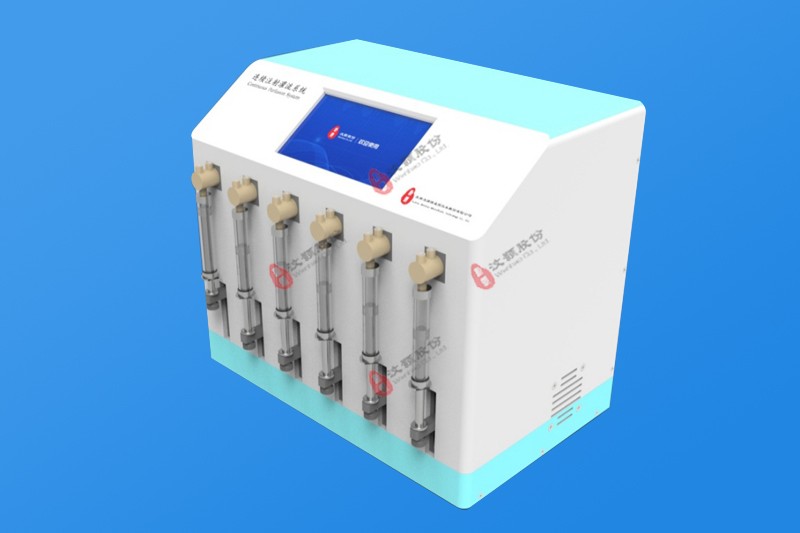

    WH-CPS-06 Continuous syringe pump

    The continuous syringe pump is a perfusion/extraction fluid sampling device that can independently control 6 channels. The maximum stroke of the product is 60mm, the applicable syringe range is 1~10ml, the maximum linear thrust is 20kgf, and the linear velocity range is 4.68μm/min-133mm/min

    1. description

    1 Introduction


    The continuous injection perfusion system (vertical continuous micro-injection pump) is a perfusion/extraction type microfluidic sampling device, including three standard products:


    One set: WH-CPS-02 continuous injection perfusion system (equipped with 2 syringes);


    The second group: WH-CPS-04 continuous injection perfusion system (equipped with 4 syringes);


    Three groups: WH-CPS-06 continuous injection perfusion system (equipped with 6 syringes).


    Wenhao shares provide more channel customization services, such as 8, 10, 12 and other microfluidic sampling equipment!


    The continuous injection perfusion system (WH-CPS-06) is a high-precision fluid control equipment independently developed by Wenhao Co., Ltd. This system has the characteristics of precision, stability, and strong anti-interference ability, and can be widely used in related fields such as microfluid drive control.


    The device contains 6 sets of propulsion modules. The switching valve of each set only needs to be connected to a simple pipeline to achieve 3 continuous channels for uninterrupted liquid injection, and each set of propulsion modules can inject or draw liquid at different speeds. Easy to use and simple to operate. The parameter setting, modification and view of fluid control can be completed in the main interface of starting up. During the parameter input process, the model and inner diameter of the syringe can be selected directly from the list, or manually input, and then input other parameters ( Flow rate, flow rate, time, infusion type, etc.), the task can be suspended at any time during the work, and various parameters can be reset and executed immediately.


    2. Technical parameters


        Working mode: liquid injection, liquid suction, first injection and then suction, first suction and then injection, continuous mode


        Number of channels: 6


        Maximum stroke: 60mm


        Syringe specifications: 1mL-10 mL


        Travel resolution: 0.078um


        Injection volume per microstep: 0.428 uL (10 mL syringe)


        Linear speed range: 4.68um/min-133mm/min


        Maximum linear thrust: 20kgf


        Control accuracy: ≤±0.5% (when stroke ≥ 30% of maximum stroke)


        Setting method: full touch screen setting


        Display mode: 5-inch color LCD screen, the same screen displays multiple sets of channel related parameters


        Weight: 15kg


        Working voltage: 220V/50HZ


        Dimensions: 410 (L) × 270 (W) × 365 (H) mm


        Working environment: temperature 0℃-40 ℃, relative humidity <80%


    3. Features


    3.1 Channel settings


    Each channel can be individually set up parameters, and can also perform operations such as "fast forward", "fast rewind", "start" and "pause" in a unified manner.


    3.2 Determine the syringe model


    Each channel can be placed with different brands and specifications of syringes (head 1/4-28UNF outer teeth, tail M3 inner teeth): 1) search from the manufacturer's brand list; 2) custom input syringe model and inner diameter value.


    3.3 Target parameter input


    Target parameters: liquid volume, flow rate, time. Choose to input any two parameters, and the other parameter system will get directly.


    4. Graphical interface features


    1) For the display of the syringe specification library, you can select the corresponding type according to your needs;


    2) The current operating mode and status of each channel, and the delay between each channel;


    3) Real-time individual control of each channel and unified control of all channels.


    5. Feature diagram


    Figure 1: 1) Operation display screen; 2) Switching valve; 3) Airtight sampler; 4) Push rod; 5) Tightening knob;


    Figure 2: The injection channels on the screen correspond to the first to sixth channels from left to right by default.

    Continuous syringe pump
