Introduction

The four-channel syringe pump (WH-SP-04) is a high-precision fluid control equipment independently developed by Wenhao Co., Ltd. The system has the characteristics of precision, stability, and strong anti-interference ability, and can be widely used in related fields such as microfluidic drive control.

The device is a syringe pump that combines liquid injection and liquid absorption. It is easy to use and easy to operate. The parameter setting, modification and view of fluid control can be completed in the main interface of starting up. The syringe can be directly selected from the list during parameter input You can also manually enter the model and inner diameter, and then enter other parameters (flow rate, flow rate, time, infusion type, etc.). The task can be paused at any time during the work process, and various parameters can be reset and executed immediately.

technical parameter

Working mode: liquid injection, liquid suction, first injection and then suction, first suction and then injection;

Number of channels: 4;

Maximum stroke: 130 mm;

Syringe specifications: 10 uL-30 mL;

Travel resolution: 0.078 um;

Injection volume per microstep: 0.428 uL (4 10 mL syringes);

Linear speed range: 4.68 um/min-133 mm/min;

Maximum linear thrust: 35 kgf;

Control accuracy: ≤±0.5% (when stroke ≥ 30% of maximum stroke);

Setting method: full touch screen setting;

Control method: touch screen, USB (RS485);

Display mode: 5-inch color LCD screen, resolution 854*480, multiple parameters displayed on the same screen, and running status displayed by animation;

Weight: 4-4.5 kg;

Working voltage: DC 24V;

Dimensions: 300×250×165 mm;

Working environment: temperature 0℃-40 ℃, relative humidity <80%.

Features

1.2.1 Determination of Syringe Model

(1) Search from the list

        There is a list of standard syringes in the manufacturer's brand. After the syringe model is selected, the program automatically loads the corresponding inner diameter value.

(2) Custom input

        If there is no syringe used by the user in the syringe program list, you can directly enter the type and inner diameter of the syringe. The device can store multiple sets of user-defined syringe diameter values.

1.2.2 Target parameter input

Target parameters include: liquid volume, flow rate, and time. Choose to input any two parameters, and the other parameter system will get directly.

1.2.3 Power-down memory

When the device is running, the power supply is interrupted. After the power is restored, you can choose whether to continue working according to the previous parameters.

1.2.4 Traffic jam alarm

During the operation of the equipment, if the propulsion mechanism of the syringe pump is blocked, the syringe pump will stop the propulsion mechanism and sound a whistle alarm.

1.2.5 Calibration

By calibrating the flow rate, a more accurate dispensing volume can be obtained.

Graphical interface features

?The display of the syringe specification library, you can choose the appropriate type according to your needs;

?Setting and real-time display of operating parameters;

?Setting and monitoring of operating range;

?Real-time monitoring of operation progress.

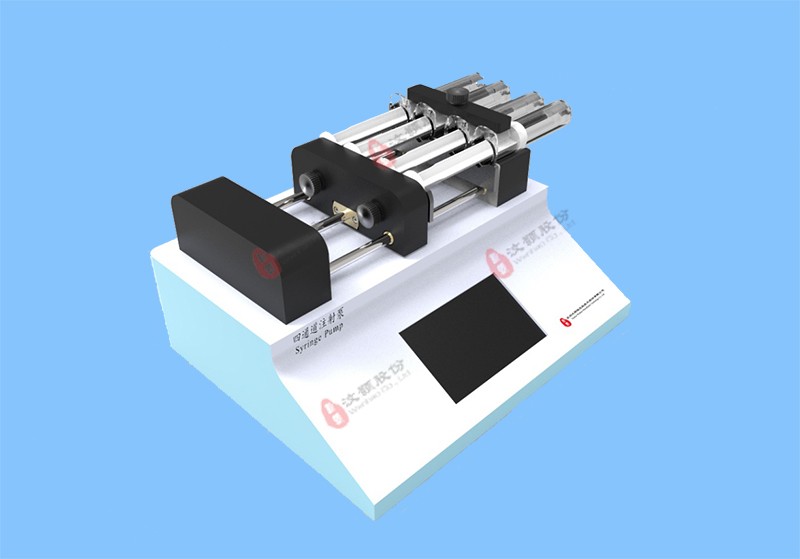

Feature Diagram

(1) Screw shaft support block; (2) Fastening knob; (3) Syringe push block; (4) Syringe; (5) Syringe pressing block; (6) Syringe tail pressing plate (7) Syringe baffle; (8) ) Shaft support block; (9) Screw rod; (10) Guide shaft; (11) Screen; (12) Power switch; (13) DC24V power socket; (14) USB interface.
