Home > Microfluidics > Standard Chips > Standard glass chip

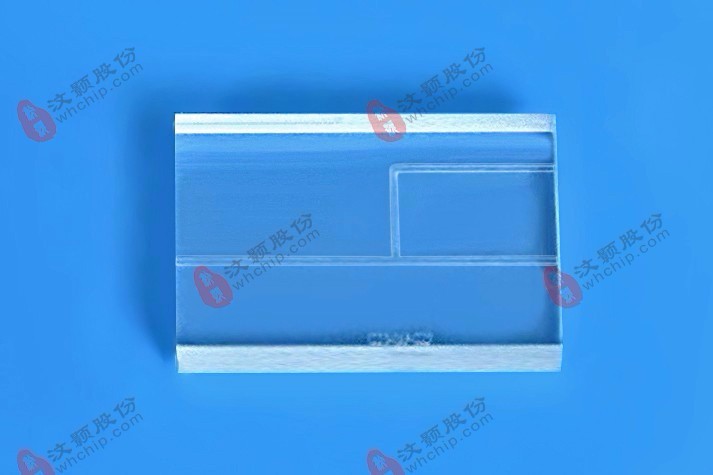

    T channel droplet glass microfluidic chip

    T channel droplet glass microfluidic chip is a glass microfluidic chip for monodisperse droplet generation. Customers can adjust the continuous water-oil two-phase flow rate, water and oil interface s

    1. description

    T channel droplet glass microfluidic chip is a glass microfluidic chip for monodisperse droplet generation. Customers can adjust the continuous water-oil two-phase flow rate, water and oil interface surface tension and other methods in the chip channel to generate different specifications of the droplets.

    T channel droplet glass microfluidic chip for our company developed WH-CF-01 cross section chip fixture, enabling quick connection and disassembly. This chip cooperates with the WH-CF-05 micro-droplet collection and collection device developed by our company to effectively prevent the liquid from disturbing the flow of the droplet and reduce the droplet fusion, so that the droplet can be generated and collected for the droplet splitting, Plus sample follow-up operation.

    At the same time, we provide our customers with different chip customization services to meet different customer needs.

     T channel droplet glass microfluidic chip T channel droplet glass microfluidic chip

    advantage:

    1) the channel surface is smooth;

    2) wide temperature and pressure tolerance range;

    3) good chemical stability and biocompatibility;

    4) good optical performance;

    5) suitable for chip fixture, enabling quick connection disassembly and drop collection;

    6) droplet size control, uniformity;

    7) small size, portability and strong.

    Chip Name

    T channel droplet glass microfluidic chip

    Inlet quantity

    2

    The number of exports

    1

    Surface hydrophilic nature

    Hydrophilic (no surface modification)

    Hydrophobic (optional)

    Droplet type

    O/W

    W/O

    Microdroplet diameter

    10250μm(optional)

    Deviation coefficient(CV

    <3%(Depending on the nature of the liquid and other factors)

    Pressure tolerance range

    <10bar

    Temperature tolerance range

    -15~150

    Chip dimensions(L×W×H

    22.5mm×15.0mm×4.0mm(Optional length)

    Chip on the chip thickness

    2.0mSm

    Chip thickness of the chip

    2.0mm

    Chip material

    Glass

    Processing technology

    HFAcid etching, thermal bonding
