Home > Microfluidics > Standard Chips > Standard glass chip

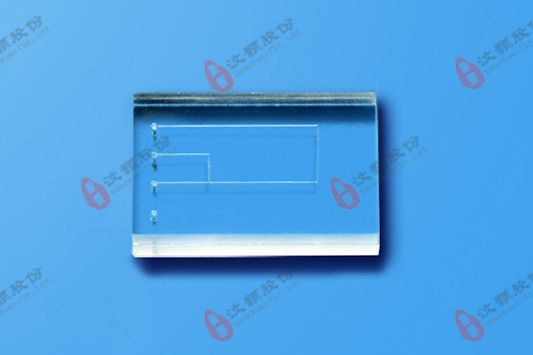

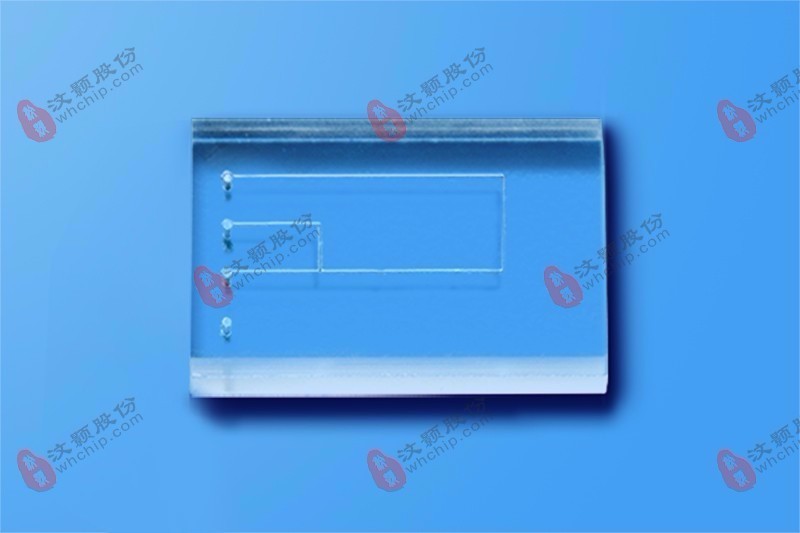

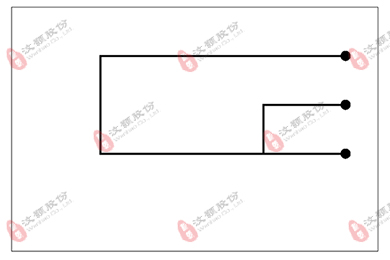

    Glass T-channel droplet generating chip

    T-channel droplet generating chip (vertical) is a glass microfluidic chip for monodisperse droplet generation. Customers can adjust the continuous water-oil two-phase flow rate, water and oil interfac

    1. description

    T-channel droplet generating chip (vertical) is a glass microfluidic chip for monodisperse droplet generation. Customers can adjust the continuous water-oil two-phase flow rate, water and oil interface surface tension and other methods in the chip channel to generate different specifications of the droplets.

    T-channel droplet generating chip (vertical) Suitable for WH-CF-02 cross-chip chuck developed by our company for quick connection and disassembly. The chip with the WHCF-05 micro-droplet collection and collection device developed by our company can effectively prevent the liquid from disturbing the flow of the droplet and reduce the droplet fusion, so as to achieve the droplet generation and collection and facilitate the droplet splitting, fusion and sample loading Follow-up operation.

    At the same time, we provide our customers with different chip customization services to meet different customer needs.

      T-channel droplet generating chip T-channel droplet generating chip

    advantage:

    1) the channel surface is smooth;

    2) wide temperature and pressure tolerance range;

    3) good chemical stability and biocompatibility;

    4) good optical performance;

    5) suitable for chip fixture, enabling quick connection disassembly and drop collection;

    6) droplet size control, uniformity;

    7) small size, portability and strong.

    Chip Name

    T-channel droplet generating chip

    Inlet quantity

    2

    Outlet quantity

    1

    Hydrophilic surface

    Hydrophilic (no surface modification)

    Hydrophobic (optional)

    Droplet type

    O/W

    W/O

    Microdroplet diameter

    10~250μm Controllable

    Deviation coefficient(CV)

    <3%(Depending on the nature of the liquid and other factors)

    Pressure tolerance range

    <10bar

    Temperature tolerance range

    -15℃~150℃

    Chip dimensions(L×W×H)

    22.5mm×15.0mm×4.0mm(Optional length)

    Chip on the chip thickness

    2.0mSm

    Chip thickness of the chip

    2.0mm

    Chip material

    Glass

    Processing technology

    HFAcid etching, thermal bonding
