Home > Devices

    PDMS Batch Processing Injection Moulding Machine

    Product Description:PDMS chip has become the best material for industrialized chips in many biochemical detection fields due to its features of breathable, soft texture, smooth pipeline and short proc

    1. description

    Product Description:


    PDMS chip has become the best material for industrialized chips in many biochemical detection fields due to its features of breathable, soft texture, smooth pipeline and short processing cycle. Wenxun has independently developed the semi-automatic and automatic PDMS chip batch injection molding process to realize the compounding-point Plastic - degassing - curing - cutting - drilling - the entire process of bonding the semi-automatic or fully automated, to meet customer needs for PDMS chip mass production.


    Semi-automatic mass production: semi-automatic PDMS chip batch injection molding process, production capacity of 100-400 die / 8 hours, the production capacity of up to 2,000 single-chip, the annual output of 720,000.


    Automatic mass production: Automatic PDMS chip batch injection molding process, the production capacity of 400-2000 die / 8 hours, the processing capacity of up to 10,000 single-chip, the annual output to achieve 3 million.

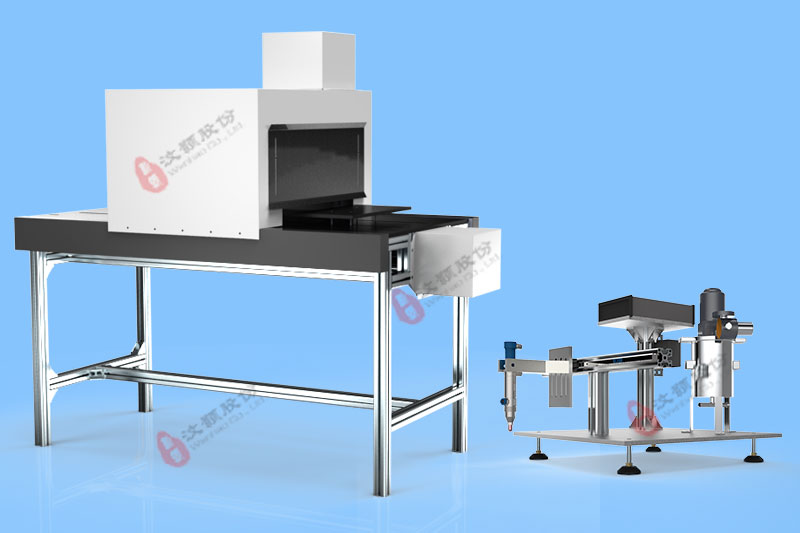

    PDMS curing machine:


    PDMS curing machine

    PDMS dispenser:

    汶顥PDMS芯片點(diǎn)膠機(jī)

    Features:


    1, the mixing part of a unique stainless steel barrel, vacuum mixing, to ensure that there is no bubble after mixing.


    2, precision automatic digital control intelligent drip machine, using the latest digital control system to ensure regular quantitative spit out the same. Function more humane, easier to operate, can be easily coated, crossed and drip, yield high-quality products, to provide production efficiency, thrifty material costs.


    3, high-precision automatic control system, accuracy up to ± 0.01%


    4, a smooth delivery system to ensure the smooth delivery of PDMS.


    5, temperature control system to improve PDMS thermosetting efficiency


    Specifications:


    Model specifications:WHP-100A (vacuum mixing plastic dispensing part)

     Machine specifications:500 × 500 × 466 (length × width × height) mm

    Total Weight:About 15Kg

    Enter the power:220 V / 50 Hz

    Enter the air pressure:0 ~ 0.8mpa

    Machine output power:100 W

    Digital timer range:0S ~ 99.99 S.

     Model specifications:WHP-100A (thermosetting part)

    Machine specifications:1480 × 708 × 1500 (length × width × height) mm

     Total Weight:About 150Kg

     The maximum load carrying capacity:50KG

     Enter the power:220 V / 50 Hz

    Machine output power:1200 W

    PDMS thermosetting time (reference):15min

     Temperature control range:Room temperature ~ 160 ℃ (temperature control)
