Home > Devices > Spin Coater

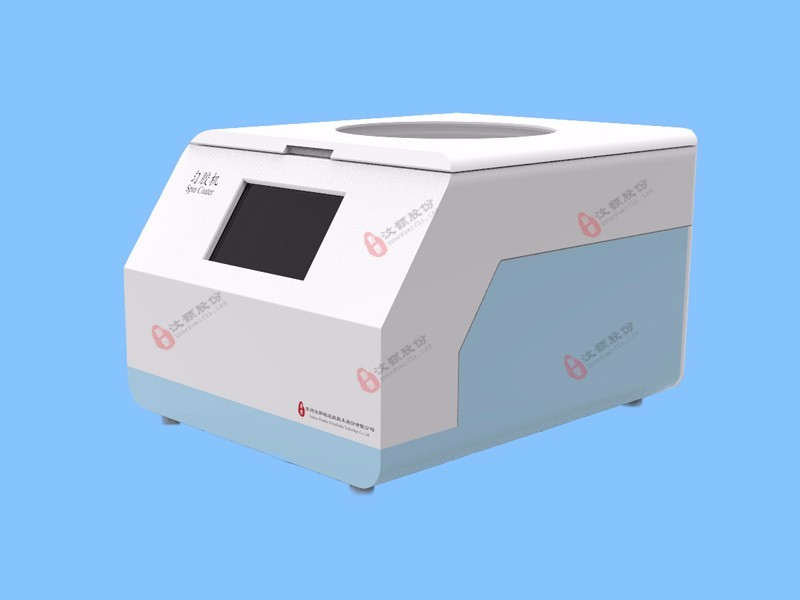

    WH-SC-01 Spin Coater

    WH-SC-01 Spin Coater for semiconductor technology, plate making and surface coating technology, scientific research, education and other units for scientific research, teaching purposes. Its overall d

    1. description

    WH-SC-01 Spin Coater for semiconductor technology, plate making and surface coating technology, scientific research, education and other units for scientific research, teaching purposes. Its overall design by WenHao Co., Ltd. independently developed completed with independent intellectual property rights.

    Spin Coater fast start and stable speed, to ensure the consistency and uniformity of plastic thickness. Full touch screen control, third gear speed. After the start of the first low-speed spin down, then switch to high speed under the rejection of plastic, speed and the corresponding time were adjustable; start and stop controllable, real-time observation of speed and other functions. The instrument is equipped with "safety switch" button, when the high-speed operation, close the cover, the "safety switch" start, during operation, the cover can not be opened. Can play a protective role.

    Desktop  Spin Coater Technical parameters:

    speed: 300-4500RPM

    time control: 1-10000s

    speed stability: ± 1%

    plastic uniformity: ± 3%

    parameter settings: touch screen settings parameters

    Suitable for φ28 to φ200mm silicon and other materials, such as uniform glue

    power input: AC220V ± 10V, 50HZ

    power: 60W

    Weight: 13kg

    Dimensions: 300 (W) * 227 (H) * 350 (D)

    working environment: temperature 0 ℃ -40 ℃, relative humidity<80%

    Technical parameters

    speed: 300-4500RPM

    time control: 1-10000s

    speed stability: ± 1%

    plastic uniformity: ± 3%

    parameter settings: touch screen settings parameters

    Suitable for φ28 to φ200mm silicon and other materials, such as uniform glue

    power input: AC220V ± 10V, 50HZ

    power: 60W

    Weight: 13kg

    Dimensions: 300 (W) * 227 (H) * 350 (D)

    working environment: temperature 0 ℃ -40 ℃, relative humidity<80%

    Technical parameters

    speed: 300-4500RPM

    time control: 1-10000s

    speed stability: ± 1%

    plastic uniformity: ± 3%

    parameter settings: touch screen settings parameters

    Suitable for φ28 to φ200mm silicon and other materials, such as uniform glue

    power input: AC220V ± 10V, 50HZ

    power: 60W

    Weight: 13kg

    Dimensions: 300 (W) * 227 (H) * 350 (D)

    working environment: temperature 0 ℃ -40 ℃, relative humidity<80%

    WH-SC-01 Spin CoaterWH-SC-01 Spin Coater

    WH-SC-01 Spin CoaterWH-SC-01 Spin Coater

    ① crash pad ② even plastic tray ③ touch screen ④ special suction plate ⑤ observation window ⑥ cover ⑦ exhaust hole ⑧ power jack and switch
