Home > Microdroplet > Droplet mass production

    Telos For Microdroplet

    1. Product introductionThe Telos system was independently developed by Wenhao. and has independent intellectual property rights. The Telos system is a device that integrates the generation, collection

    1. description

    1. Product introduction

    The Telos system was independently developed by Wenhao. and has independent intellectual property rights. The Telos system is a device that integrates the generation, collection and analysis of droplets. It is an ideal system for research in food science, drug delivery and particle synthesis. Based on a single microfluidic chip, the Telos system is a breakthrough product in the parallel microfluidic process. This modular, scalable and highly flexible system can generate tens of thousands of droplets per second, dozens of liters per day. drop.


    The Telos system can be assembled in parallel at six levels, at a relatively advanced level in China. Each module has a microfluidic chip, each with four serpentine-shaped flow channels that can run 24 droplet formation channels at a time. The Telos system contains a droplet collection jacket (chip holder) that can be configured to allow droplets to be collected into a large volume reservoir or parallel tubes for downstream process steps.


    2. Product advantages


    > The droplet size is controllable and can be adjusted from 10 to 250 μm;


    > The droplets are monodisperse and the production rate is controllable;


    > Small size, light weight and portability;


    > can be combined with UV curing droplets;


    > Avoid liquid flow disturbances and droplet fusion;


    > Facilitate the collection and subsequent operation of droplets.


    3. Application


    > The resulting droplet products can be used in a variety of applications such as nutrition, cosmetics and materials science;


    > synthesis of microspheres for use in diagnostics and biology;


    > Design control of drug-dispersed emulsion droplets;


    > Ideal for primary research and batch production of droplets.


    4. Technical Description


    Drop size range

     10 - 250μm

    Monodispersity

     CV≤5%

    Droplet yield

     ≥10000/S

    Chip structure

     Serpentine focusing chip

    Single set valve weight

     450g

    Operating pressure range

     0-10bar

    Operating temperature range

     4-80 ° C

    Is it an independently controlled fluid?

     Yes

    Whether flow resistance is required

     Yes

    Liquid supplement

     high speed

    Connection speed

     fast

    Experimental flexibility

     high

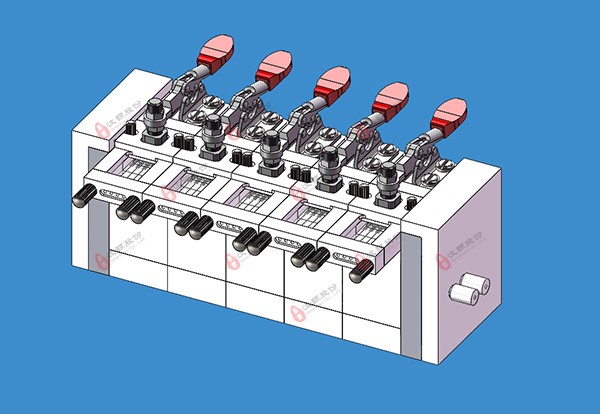

    5. Feature diagram

    6. Standard component accessories

    Component accessories

     Quantity

    Telos system device

     1 set

    Telos system chip

     Optional

    4-hole spring pad

     5

    Chip gasket

     5

    PTFE tube

     5m

    Note: Due to the small size of the accessories, if the accessories are missing, if any parts are missing, please contact our customer service to purchase.




     The device uses test results with our production sampling system (such as constant pressure pump). The inner sample hole corresponds to a continuous phase liquid, and the outer sample hole corresponds to a dispersed phase liquid.
