1 Introduction

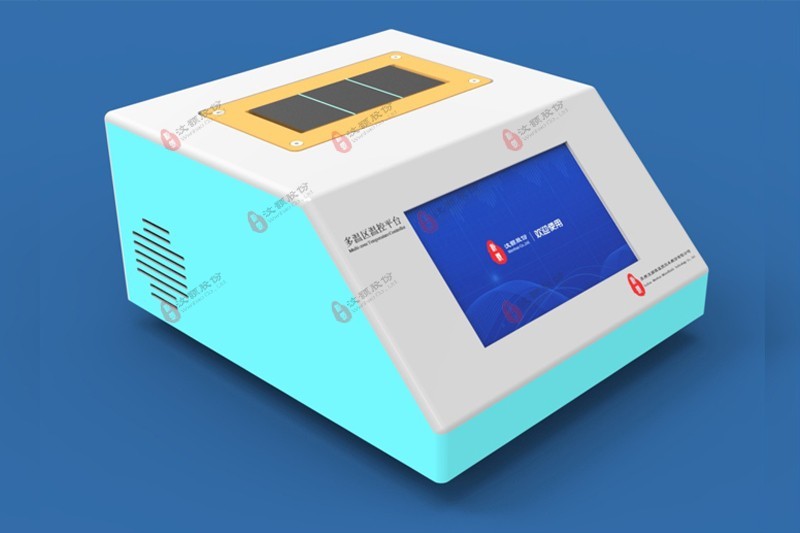

The WH-MTC-01 multi-temperature zone temperature control platform is a temperature control device independently developed by Wenhao Co., Ltd., which is easy to operate, high in temperature control accuracy, and stable in performance. With three independent temperature control zones, each zone can be set with different parameters for independent heating. Suitable for various temperature control studies such as microfluidic chips, well plates, centrifuge tubes, etc.

2. Technical parameters

Dimensions: 220(L)*190(W)*115(H)mm;

Single heating surface specification: 30*40mm;

Power supply: 220VAC;

Power: 100W

Temperature control accuracy: ±0.5℃;

Temperature control range: room temperature~100℃;

Operation mode: 5 inch touch screen control

Weight: 4kg;

3. Feature diagram

(1) Heating block; (2) Heat insulation material; (3) Touch screen; (4) Socket switch.

4. Operation process

(1) Turn on: Turn on the power, turn on the power switch on the back, the touch screen lights up, enter the temperature display interface, and the multi-temperature zone temperature control platform enters the standby state.

(2) Set temperature: set the temperature of the left platform, middle platform and right platform respectively. According to needs, the corresponding temperature can be set for different heating zones.

(3) Start and run: Click the corresponding button on the right, when the current status is displayed as "Start", start heating and enter the heating state.

(4) Stop heating: Click the corresponding button on the right, and when the current status is displayed as "Stop", stop heating and enter the cooling state.
