Home > Accessories > Microfluidic Fixture

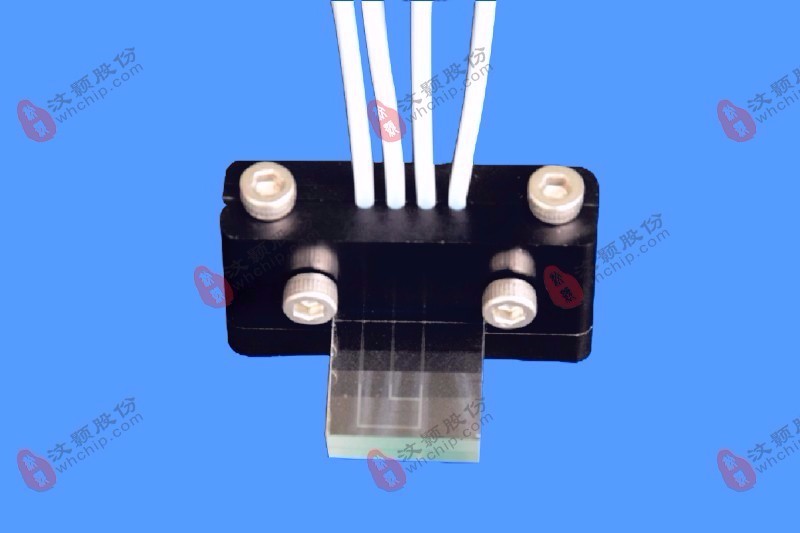

    Standard Microfluidic Chips Vertical Section Holder

    Vertical Fixture? provide a fast and reliable connection to standard-sized microfluidic chips. Our vertical clamps work with a range of standard chips. Standard chip thickness of 4.0mm, width 15.

    1. description

    Vertical Fixture  provide a fast and reliable connection to standard-sized microfluidic chips. Our vertical clamps work with a range of standard chips. Standard chip thickness of 4.0mm, width 15.0mm, the length can be changed, the processing of different lengths of the pipeline, to complete a specific function. Customers can order standard or custom chips for use with vertical clamps to perform a range of microfluidic cell operations including microdroplet formation, multilayer drop formation, solution mixing, and more.

    Standard fixture use advantage:

    1) small size, light weight, portability and strong;

    2) chemical stability, corrosion resistance;

    3) With the use of small size chips, low cost;

    4) wide range of temperature and pressure tolerance;

    5) small dead volume;

    6) Can cooperate with optical detection system to facilitate experimental observation.

    specification

    specification

    Description

    Into the liquid, liquid outlet

    Up to four, any combination

    Chip thickness

    4.0mm

    Chip width

    15.0mm

    Connecting pipe size

    Outer diameter1.6mm

    Connect tube material

    PTFE

    Flow rate tolerance range

    0-0.25m/s

    Pressure tolerance range

    30.0bar

    Temperature tolerance range

    -15.0-150.0℃

    other

    <0.3μLEach pipe
